Manosplint® 5L/9L/28L/56L Splinting Bath with Lift Off or Hinged Lid

Key Information

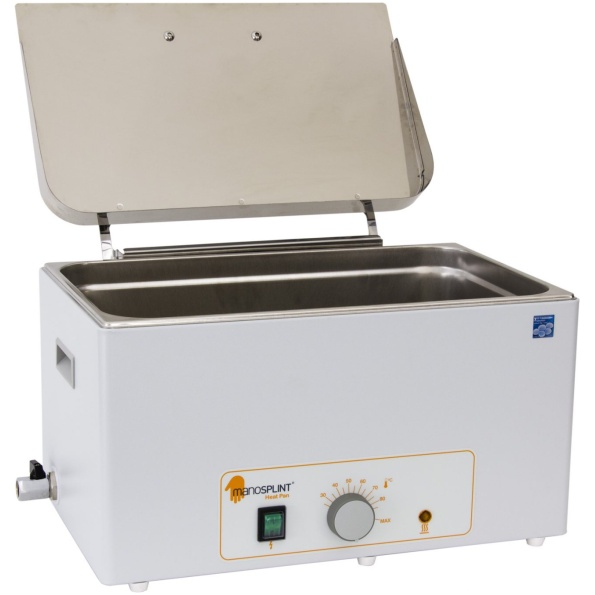

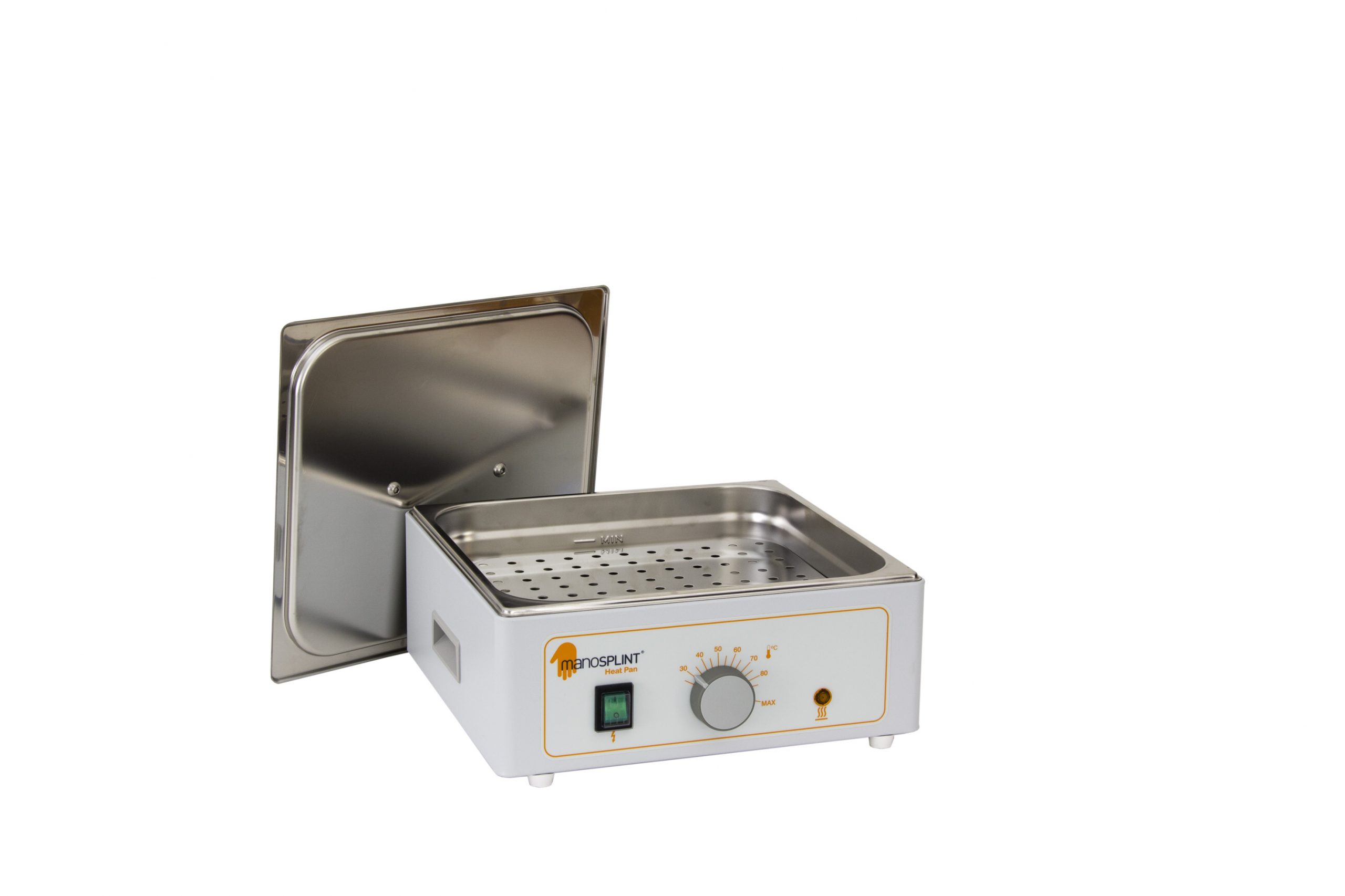

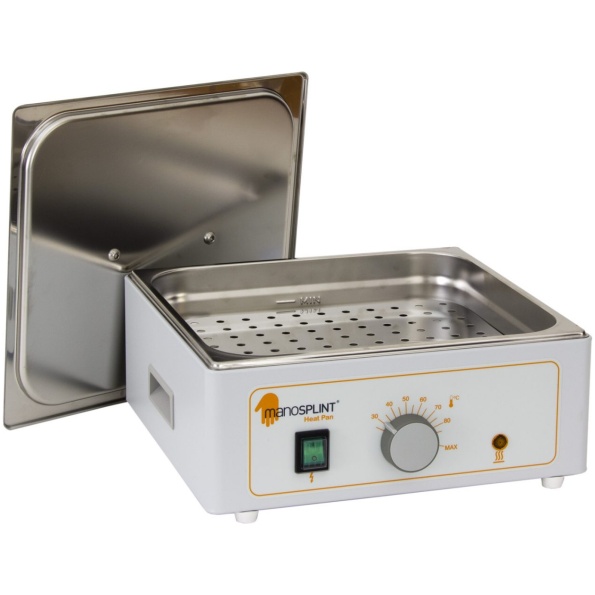

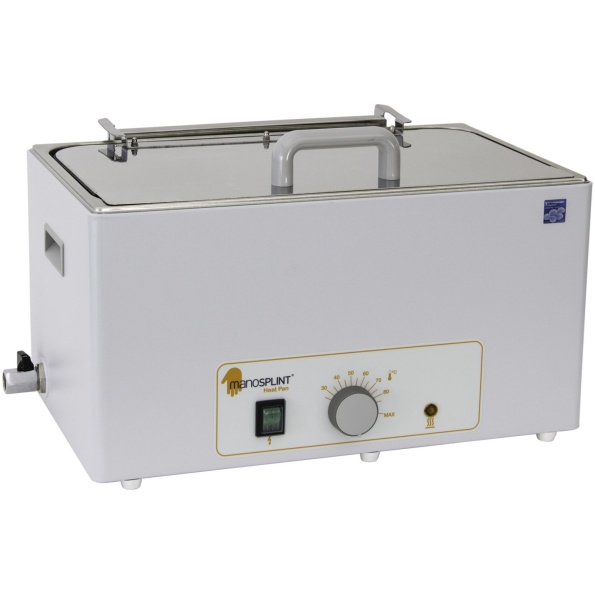

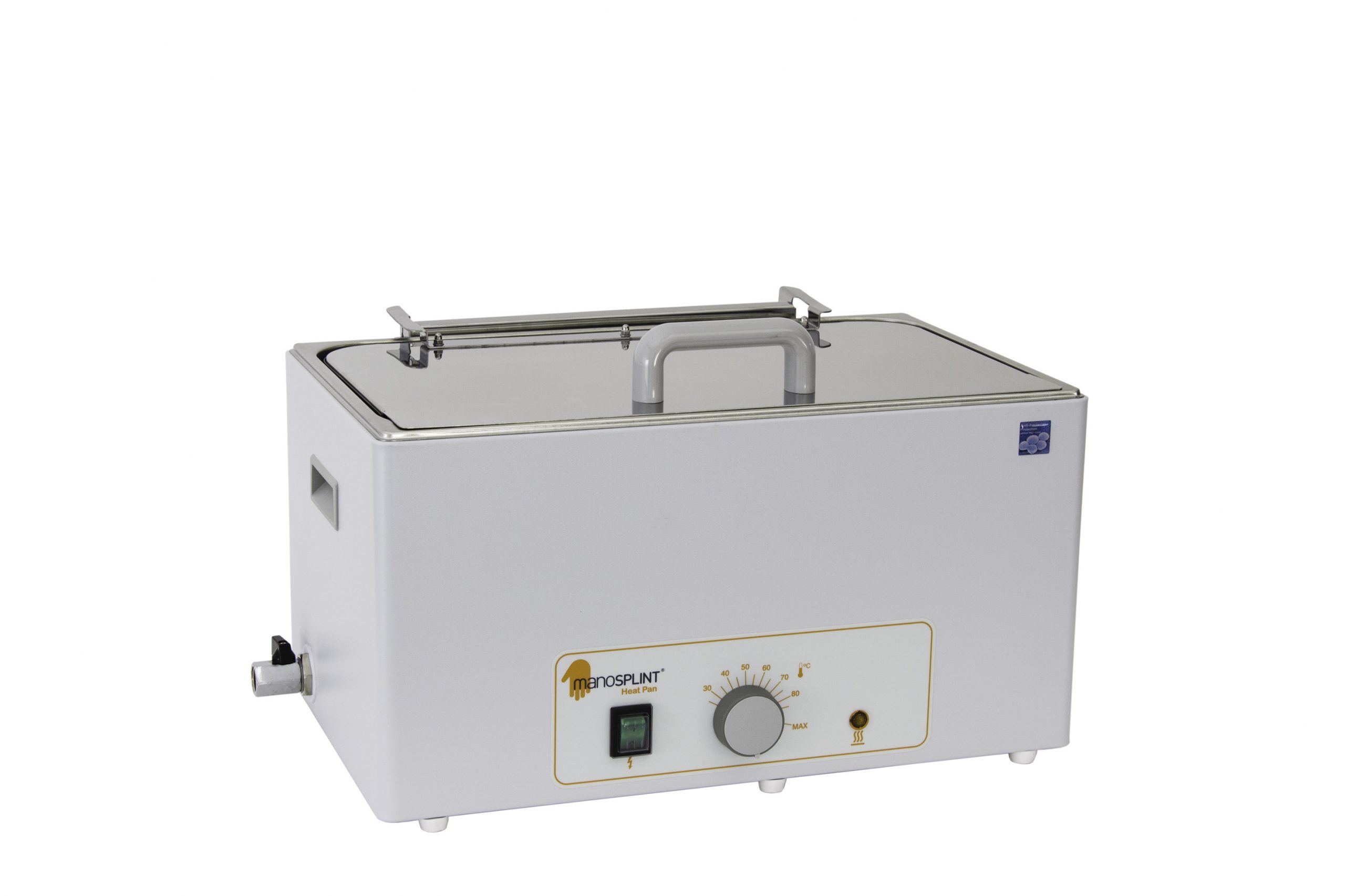

The Manosplint® Heat Pans are constructed using high quality stainless steel with options of both removable (lift off) and hinged lids.

Each pan is thermostatically controlled with an illuminated switch that indicates when the water has reached temperature.

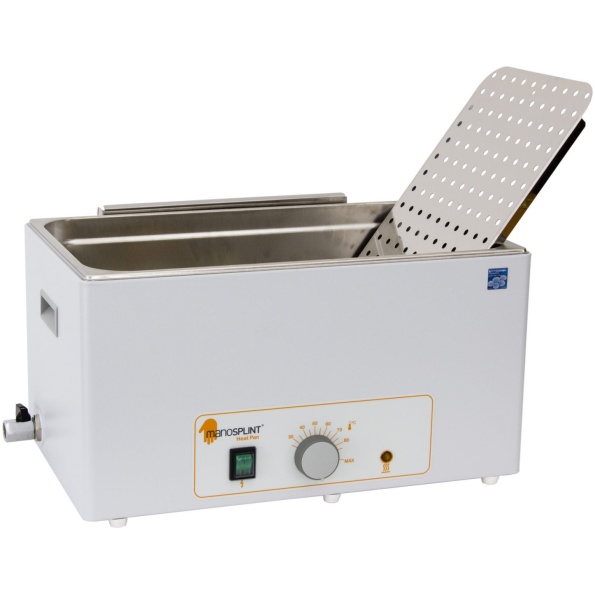

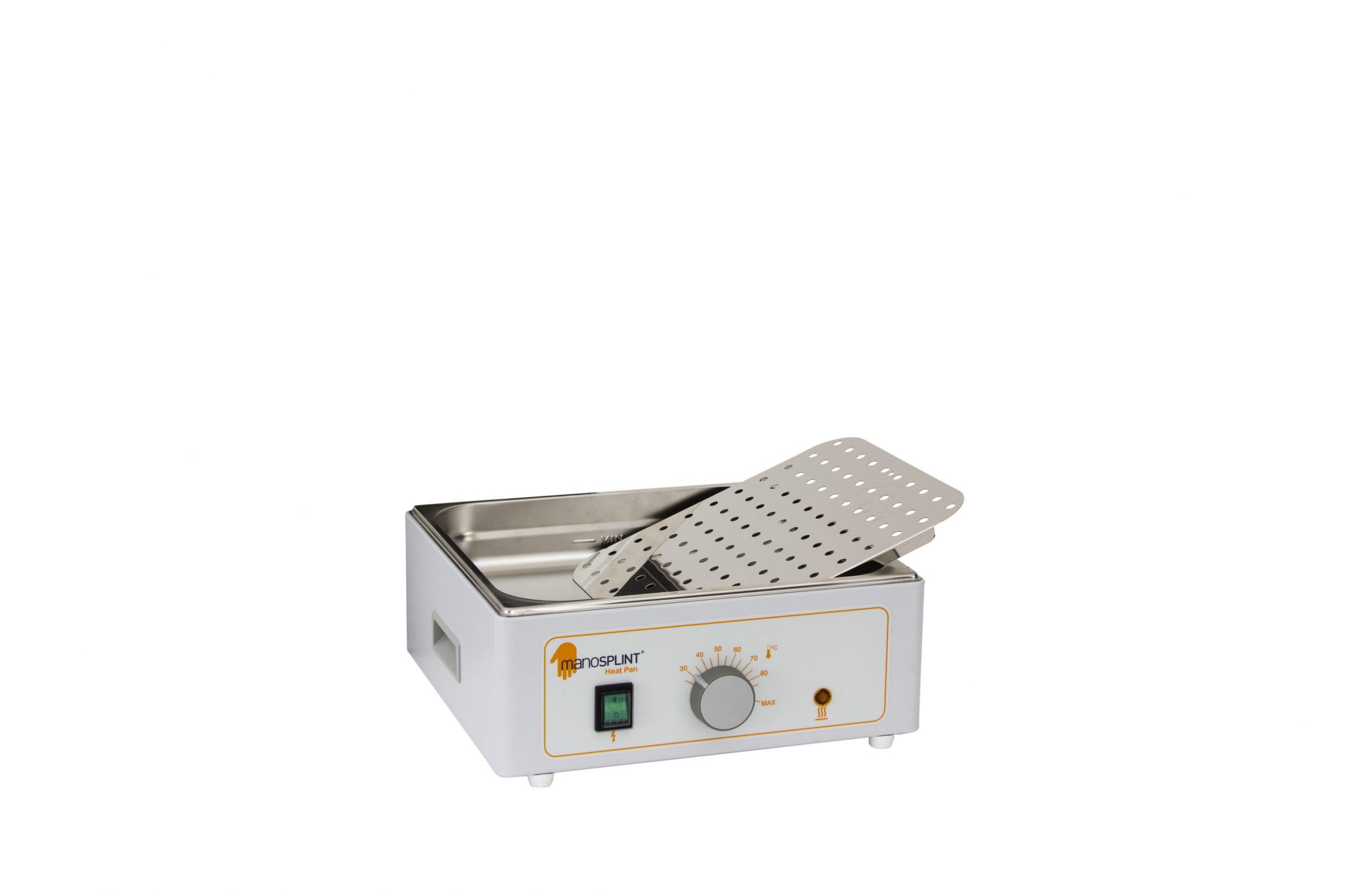

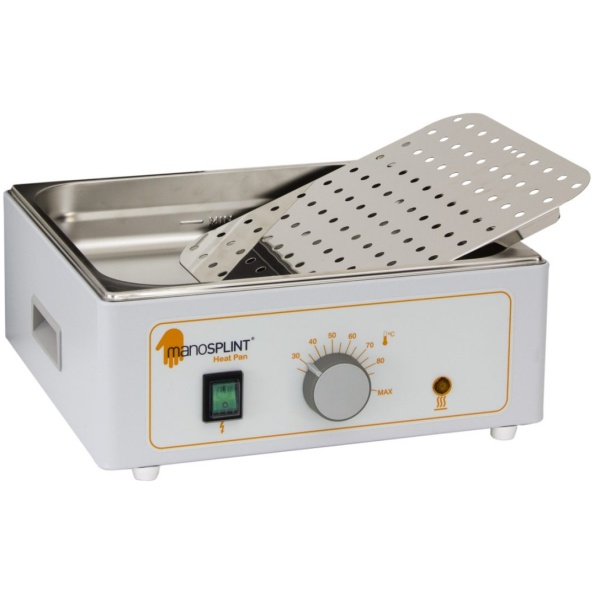

Each pan is supplied with a perforated internal tray.

The insulated handles ensure that the lids can be raised and lowered safely.

The hinged lids have been cleverly designed to ensure that all condensation drains back into the main pan when it is being raised and lowered.

Supplied with a two-year warranty.

5 Litre Heat Pans
Available with a lift off lid option only.

This neat, compact version is 135mm(H) x 361mm(L) x 332mm(W) (external dimensions).

9 Litre Heat Pans
Available in both lift off and hinged lid options.

This longer version of the heat pan is 135mm(H) x 532mm(L) x 332mm(W) (external dimensions).

28 Litre Heat Pans
Available in both lift off and hinged lid options.

This version of the heat pan is much deeper than the other versions.

It is 290mm(H) x 532mm(L) x 332mm(W) (external dimensions) and is supplied with an integral drainage tap.

56 Litre Heat Pans
Largest version of our heat pans.

Supplied with two lift off lids.

It is 290mm(H) x 660mm(L) x 532mm(W) (external dimensions) and is supplied with an integral drainage tap.
