New HM CAST & SPLINT

We take the lead in making the world happy and healthy

HM CAST

The first in the world- You can take shower even when you are wearing cast

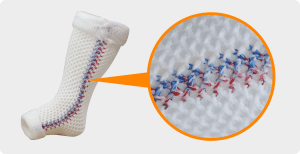

HM CAST is abbreviation of Hybrid Mesh, meaning that our product is made up of unique fabric that constitutes multi functioning net(net structure).

INTRODUCTION

Permeability

As for traditional cast , you have to first wrap the affected area with cotton fabric and bind it with bandage , or tape it with tape or cast bandage. So , it causes itching and odor as you can not have contact with water , which causes great pain on patient’s part.

– HM CAST is made up of unique fabric , which is knitted with unique weaving , so it has a good air permeability , thus resulting in reduction of itching and odor. As a result , after you can take shower or bath it is naturally dried with air permeation and body temperature ( water repellency fabric)



Wearing Procedure

As for traditional tape method , it requires a measure of expertise for wearing procedure. And despite such expertise , still there is a possibility of wound due to curved surface of skin.

– HM CAST is worn just like socks are worn . And due to its flexibility , it hardens according to the natural curves of skin so it causes no wound and feels comfortable.



Permeability

As for plaster or glass fiber products , they hinder X-ray from permeating so it makes hard to verify the healing process of bones.

– HM CAST is made of cotton yarn so X-ray can easily permeates and helps easily verify detailed healing process of bones.



Light weight

HM CAST is a lot lighter than existing products so it reduces discomfort of patients.

– HM CAST is made of unique fabric enabling air to permeate easily so that absorption and discharge of moisture naturally take place and there is no accumulation of moisture on the product which burdens patients.



Fashionable

– HM CAST is stocking-shaped product on which you can personally add patterns or select different colors of the products so you can have your own fashionable cast.



Environmental

Traditional cast is made of glass fiber so it is hard to incinerate.

– HM CAST is poly type cotton yarn fabric so it is easy to incinerate.

HM CAST

HM Cast ( One Step Type )

Health Insurance Code
Product Code
Description
K8600025
HMC225
2″ X 25Cm
short arm
K8602025
HMC245
2″ X 45Cm
long arm, short leg
K8604025
HMC335
3″ X 35Cm
short arm
K8603125
HMC350
3″ X 50Cm
long arm, short leg
K8608025
HMC370
3″ X 70Cm
long leg
K8610125
HMC435
4″ X 35Cm
short arm
K8609025
HMC455
4″ X 55Cm
short leg
K8611025
HMC490
4″ X 90Cm
long leg
K8611125
HMC555
5″ X 55Cm
short leg
K8611225
HMC590
5″ X 90Cm
long leg

[ Short arm ]


01. Roll the skin protector in donut shape and put it from the finger edge and unroll it upwards.

02. Take out the cast from the package and roll it in donut shape.
(Depending on whether to fix thumb or not , decide whether to cut and adjust a portion of the cast)


03. Dip the rolled cast in cold water for 3-5 seconds and shake off the water once or twice.


04. Leaving about 3cm of loose end from the skin protector ( in order to fold and attach the loose end onto the cast after the cast is worn ) , roll the cast around the affected area in round shape and fix it by folding the protector.


05. Unroll the cast up to the end and finish it by folding the loose end of the skin protector.


06. Do molding procedure. ( Now , you can do molding procedure by applying some water in your hand once or twice , then hardening starts.)


07. Complete shape of the cast!!



[ Short leg ]


01. Roll the skin protector in donut shape and put it from the finger edge and unroll it upwards.


02. Take out the cast from the package and roll it in donut shape.
(Depending on whether to fix big toe or not , decide whether to cut and adjust a portion of the cast.)


03. Dip the rolled cast in cold water for 3-5 seconds and shake off the water once or twice.


04. Leaving about 3cm of loose end from the skin protector (in order to fold and attach the loose end onto the cast after the cast is worn) , roll the cast around the affected area in round shape and fix it by folding the protector.


05. Finish it by folding the loose end of the skin protector on the two sides and do molding work.
(Now , you can do molding procedure by applying some water in your hand once or twice , then hardening starts.)


06. Complete shape of the cast!!

VIDEO OF WEARING PROCEDURE

Video of Wearing Procedure (Short Arm)

Video of Wearing Procedure (Short Leg)

Video of Wearing Procedure (Long Arm)

Video of Wearing Procedure (Long Leg)
