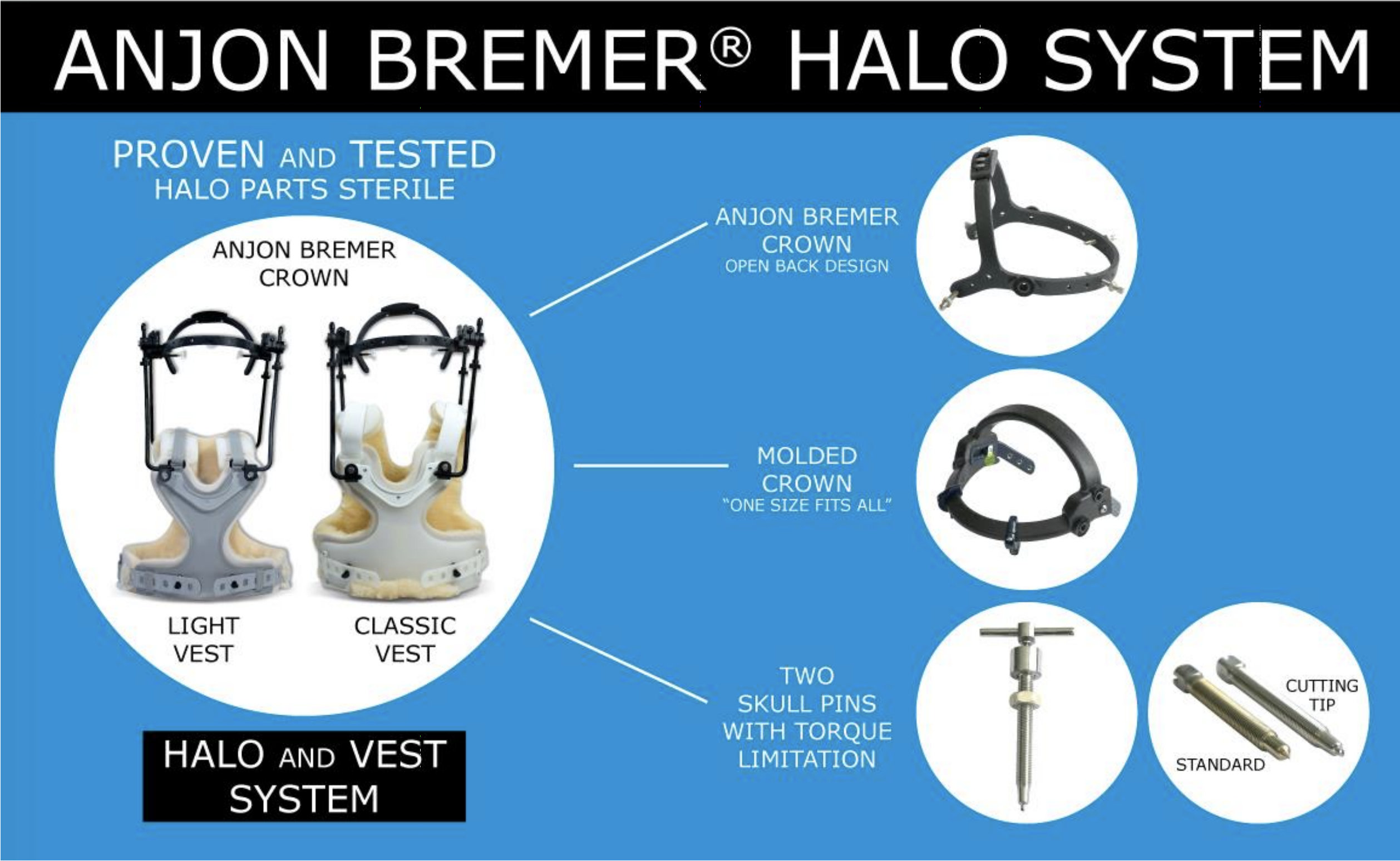

Anjon Bremer® Halo System
THE ANJON BREMER HALO SYSTEM IS THE STANDARD AGAINST WHICH OTHER FORMS OF EXTERNAL FIXATION ARE JUDGED.
PROVEN and TRUSTED with WORLDWIDE ACCEPTANCE
The Anjon Bremer Halo system is the standard against which other forms of external fixation are judged. External Cervical Fixation System
For Spinal Technology Customers:
We offer the products listed during our standard business hours.

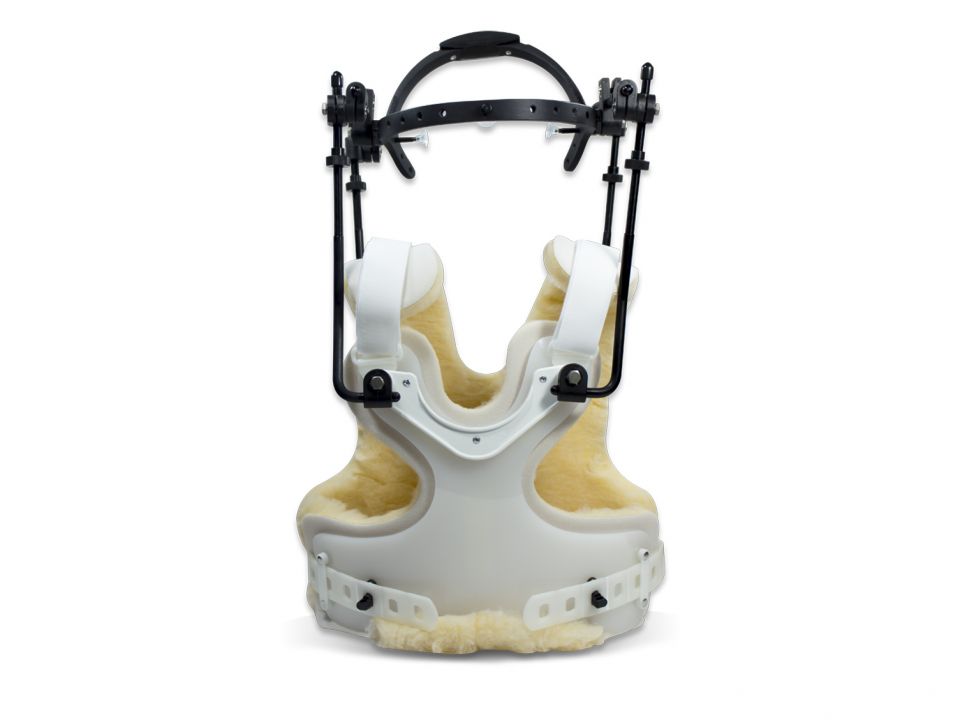

Anjon Bremer® Halo Classic Vest
How to size:
Two measurements are required:
1. Patient Height
2. Circumference of patient thorax at the xyphoid process
Select The Appropriate Anjon Bremer® Halo Classic Vest:
| PRODUCT# | SIZE: | PATIENT HEIGHT: | PATIENT CIRCUMFERENCE: |
|---|---|---|---|
| 100005 | Small | 5’9” (176cm) | 32” to 38” (82-98cm) |
| 100006 | Large | 5’9” (176cm) | 36” to 42” (92-108cm) |
| 100007 | Extra Large | 42” to 58” (108-148cm) |

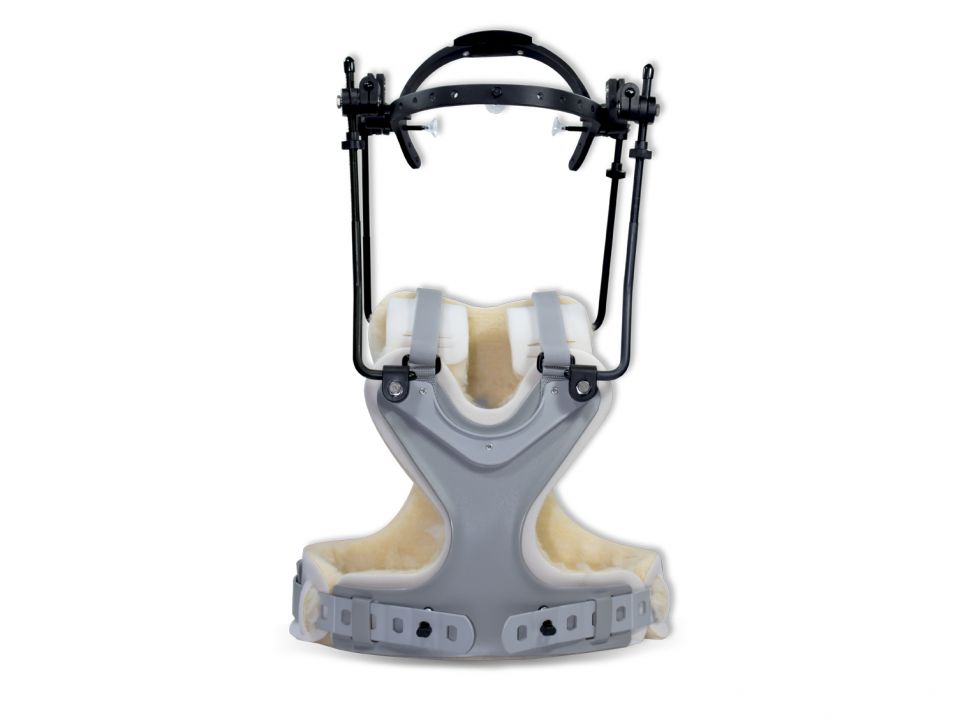

Anjon Bremer® Halo Light Vest
How to size:
Two measurements are required:
1. Patient Height
2. Circumference of patient thorax at the xyphoid process
Select The Appropriate Anjon Bremer® Halo Light Vest:
| PRODUCT# | SIZE: | PATIENT HEIGHT: | PATIENT CIRCUMFERENCE: |
|---|---|---|---|
| 100001 | Short | 5’7” (170 cm) | 28” to 38” (72-98 cm) |
| 100002 | Tall | 5’7” (170 cm) | 30” to 44” (76-112 cm) |
Anjon Bremer® – Halo Crown Sterile
ANJON BREMER® HALO CROWN
| ANJON BREMER® HALO CROWN | PRODUCT# | SIZE: | PATIENT CIRCUMFERENCE: |
|---|---|---|---|
| 100054 | Small | 9-23in (48-58cm) | |
| 100055 | Large | 23-26in (58-66cm) | |
| Includes: (5) Skull Pins, (8) Torque Limiters |
Anjon Bremer® – Halo Crown Sterile

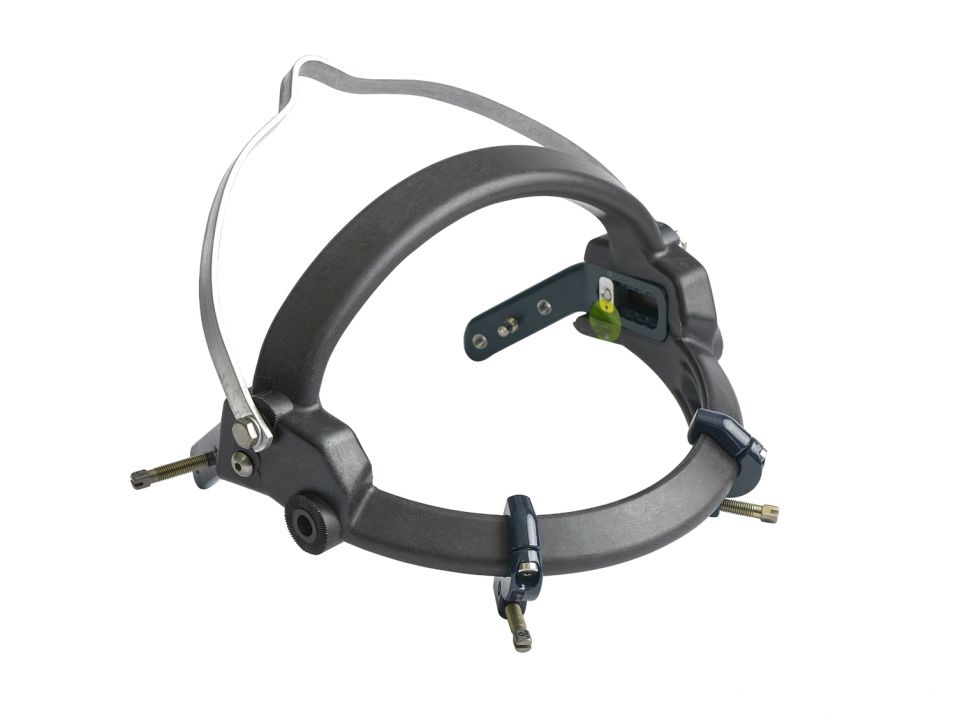

Anjon Bremer® Halo Molded Crown Sterile
| ANJON BREMER® HALO MOLDED CROWN | PRODUCT# | PATIENT CIRCUMFERENCE: |
|---|---|---|
| 100048 | 19-26in (48-66 cm) | |
| Includes: 5 Cutting Tip Skull Pins, 8 Torque Limiters |

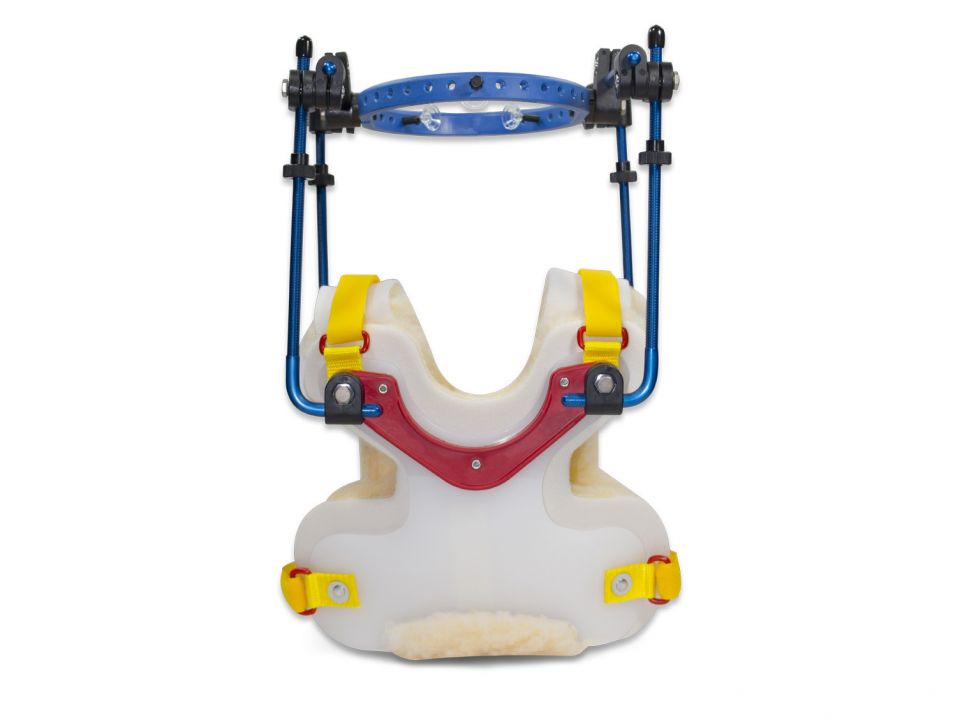

Anjon Bremer® Halo System for Pediatric Patients
Anjon Bremer® – Halo Pediatric System
Rings, vests and accessoriesRings – each supplied with 10 skull pins and traction bale.
| PRODUCT# | DESCRIPTION: | PATIENT CIRCUMFERENCE: |
|---|---|---|
| 100046 | Small Pediatric Ring – Sterile | 15-16in (38-41cm) |
| 100047 | Large Pediatric Ring – Sterile | 17-19.5in (43-50cm) |
Vests – each supplied with anterior and posterior shells and infrastructure and a liner.
| PRODUCT# | DESCRIPTION: | PATIENT CIRCUMFERENCE: |
|---|---|---|
| 100014 | Toddler Pediatric Vest | 20-24in (50-62cm) |
| 100015 | Child Pediatric Vest | 22-28in (56-72cm) |
| 100031 | Teddy Bear with vest | |
| 100033 | Disposable Wrench |
Limited Warranty and Disclaimer
Anjon Bremer Halo Systems are sold with a limited warranty to the original purchaser against defects in workmanship and materials any other express or implied warranties, including warranties of merchantability or fitness, are hereby disclaimed.
Sterilization Instructions
The following components of the Anjon Bremer Halo System are shipped non-sterile and must be sterilized prior to use using the following packaging configuration for sterilization.
Anjon Bremer Skull Pins:
Pins will be delivered in a foam pouch sealed with autoclave tape inside a paper pouch unsealed upon delivery. Please inspect the pins for damage prior to sterilization. The pouch is self-sealing; please seal prior to sterilization. After removing the protective strip, seal the pouch by folding the adhesive strip onto the pouch. Apply pressure from the center of the adhesive towards the edges. Repeat this motion an additional time for extra security.
Anjon Bremer Crown, Adjustable Ring and Pediatric Ring:
These products are delivered non-sterile and fully assembled. Inspect for damage, but do not disassemble prior to sterilization. Please individually wrap each crown in two (2) layers of a 1-ply polypropylene wrap using a simultaneous envelope folding technique. The wrap should be FDA-cleared and suitable for a package content weight of 3 – 6 lbs. The wrap provided with the crown meets these requirements.
